Apex Action Enhancement Red Trigger M&P Shield Duty/Carry Kit

Apex Tactical Specialties, Kit, Red, Shield Action Enhancement Trigger and Duty Carry K

• Reduces trigger pull by approximately 2 lbs.
• Smooth uptake and reset
• Reduces pre-travel, over-travel and reset
• Maintains factory safety values

What It Does

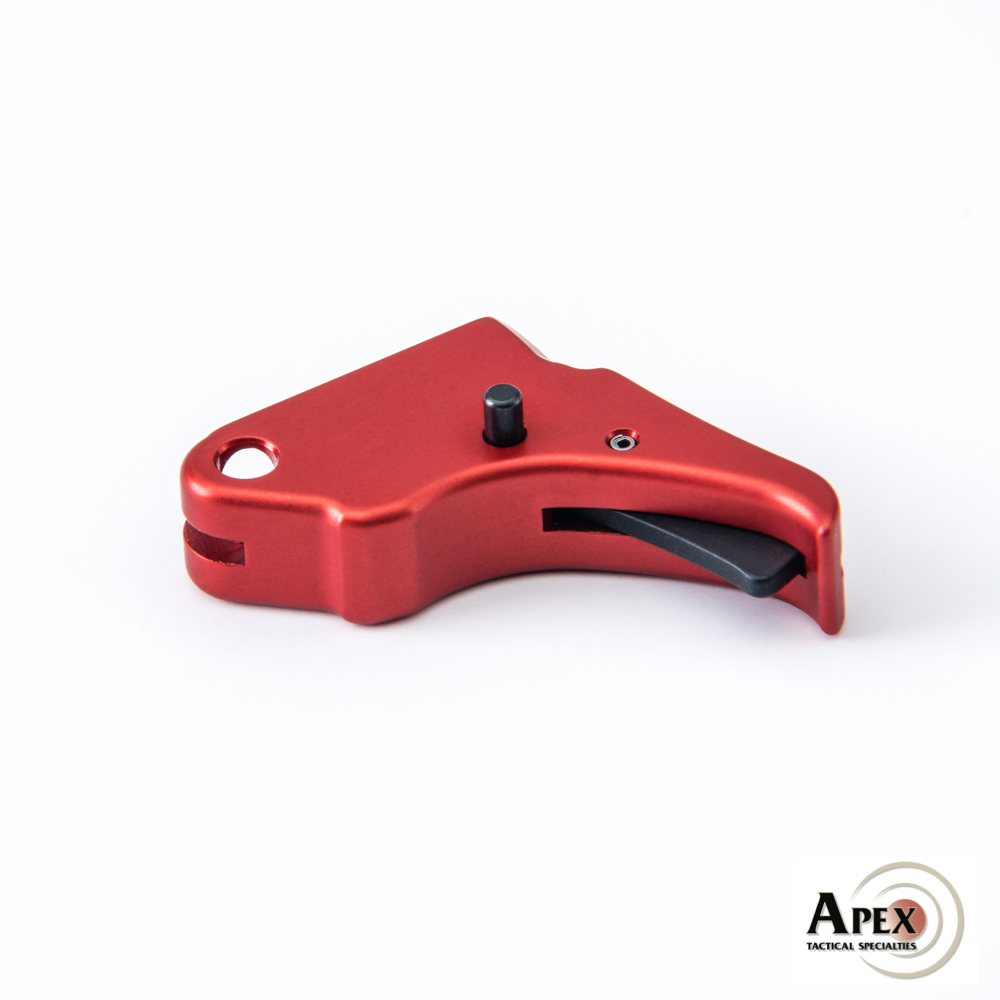

This kit is a combination of the Apex Duty/Carry Kit for the M&P Shield and the Apex Action Enhancement Red Trigger for the M&P Shield. The Action Enhancement Trigger directly replaces the factory hinged trigger with a solid aluminum trigger body which reduces pre-travel and over-travel by approximately 20%. It features a smooth face with a center mounted pivoting safety that maintains factory safety values.

The Apex Duty/Carry Kit for the M&P Shield was designed to provide the Shield pistol owner a smooth, consistent trigger pull that is approximately 2 lbs lighter (based on variations in factory tolerances) with the advantages of shorter over-travel and more detectable trigger reset. However, armorer or gunsmith installation of the Ultimate Striker Block (USB) into the Shield slide is strongly recommended**.

Expected Results
– Reduces trigger pull by approximately 2 lbs.
– Smooth uptake and reset
– Reduces pre-travel
– Reduces over-travel
– Reduced reset
– Center mounted pivoting safety maintains factory safety values

Applicable To What Gun(s)
Works with all Smith & Wesson M&P Shield Pistols in 9mm and .40 calibers. NOT for use in the Shield 45.

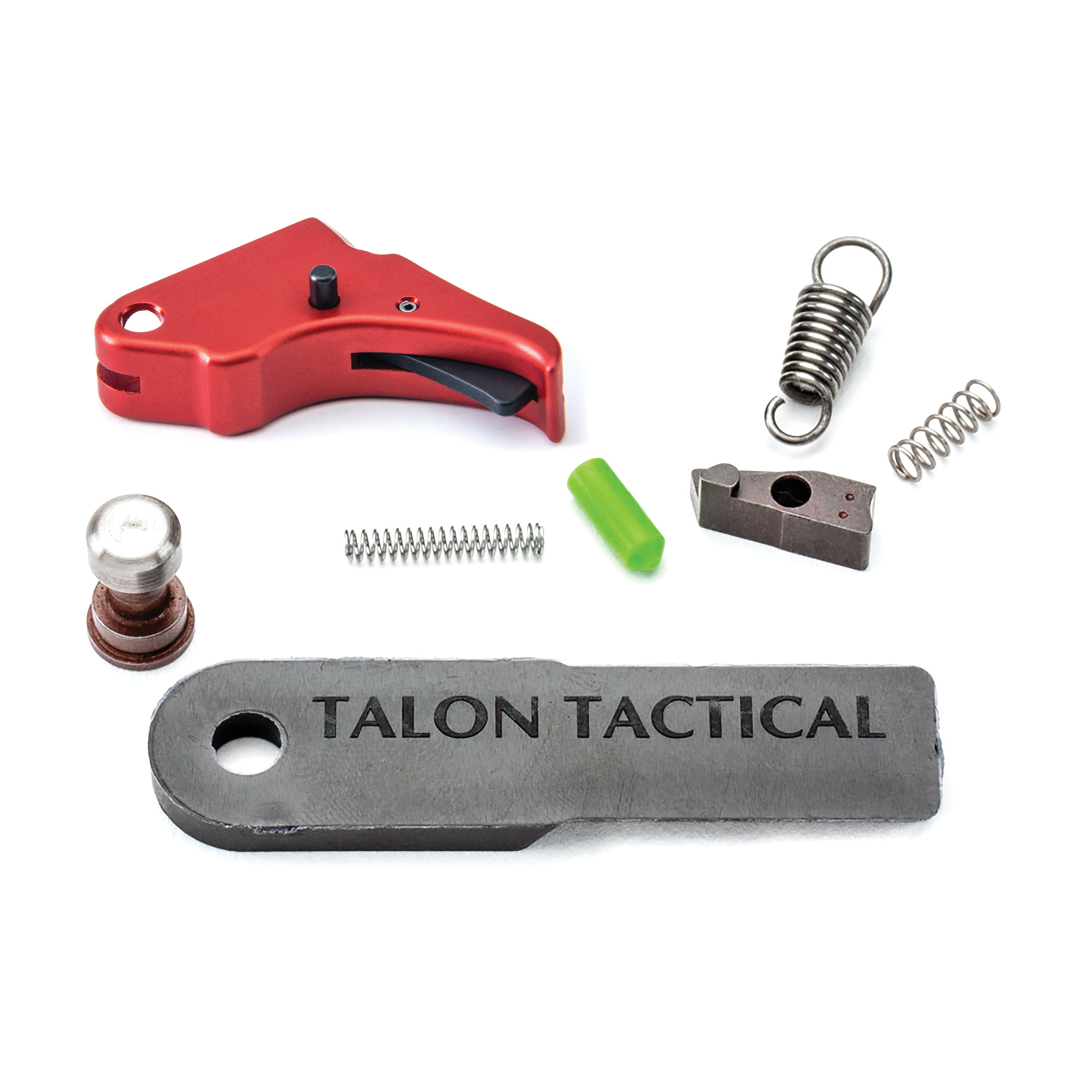

In The Package
1 ea. Red Anodized Aluminum Action Enhancement Trigger for M&P Shield (9/40 only)
1 ea. Trigger Return Spring Installation Shield Slave Pin (to assist with trigger return spring installation)
1 ea. Fully machined .45 Sear
1 ea. Ultimate Striker Block Kit
1 ea. Ultimate Striker Block
1 ea. Striker Block Spring
1 ea. Talon Tactical tool
1 ea. Shield Carry Spring Set
1 ea. Sear Spring (1/8″)
1 ea. Rated Trigger Return Spring

Installation Resources
Shield Trigger Bar Install PDF – This is the recommended process for installing the trigger bar in an Apex replacement trigger for the S&W M&P Shield.

You may need to make an adjustment to the trigger bar loop for proper function. If you should need to tune your trigger bar, please follow the instructions on the following video: Trigger Bar Loop Adjustment Video
